Price: $2,008.00
(as of Feb 06, 2024 18:22:04 UTC – Details)
Product Description

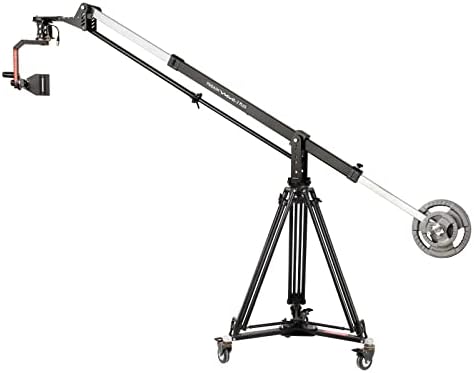

Proaim 10′ Wave-2 Camera Jib, Pan Tilt, Dolly Stand for Camera Setups up to 25kg
Best Travel Crane Package for Outdoor Extremes & Indoor Studio Shots!!
PROFESSIONAL. STRONG. LIGHT. SMOOTH.

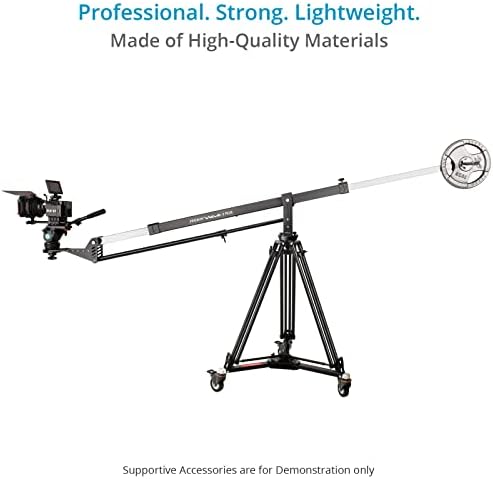

Proaim 10 ‘ Wave-2 Plus Video Jib Crane, specifically designed for indoor & outdoor video productions, is a portable filming solution for videographers and cinematographers who need a lightweight and ultra-portable Crane system. The Jib has many great features such as telescopic design, versatile camera mount, sturdy assembly hub, panning knobs, making it one of the most value for money jib. It allows capturing smooth, dynamic sweeping pans and camera rise. High strength Aluminum construction with unbeatable stability holds camera setups up to 25kg / 55lb payload.
POWERFUL. SIMPLE. AFFORDABLE.
EXPERTLY CRAFTED JIB

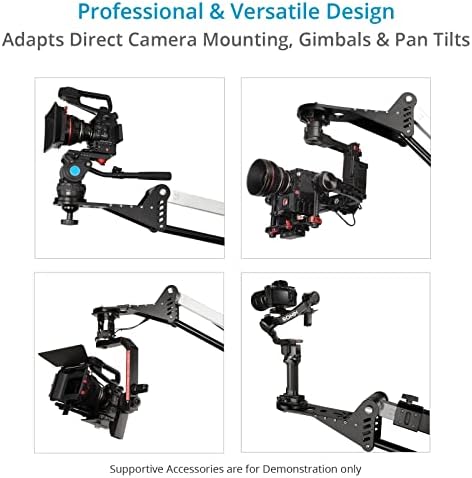

The Jib has a camera head mount that accepts 75mm/100mm fluid heads. Two Arm Design offers enhanced strength & stability to the entire jib setup. The Jib comes with pan knobs to control the panning of Jib. Built-in bubble leveler offers fast, accurate set up on uneven surfaces. Assembly hub provides the perfect drag for smooth panning of the jib arm and absorbs unwanted vibration or movement from the operator. Hi-tensile weight closers keep the weight discs intact for perfect balance. Heavy-duty Dolly gives movement to the Crane mounted on the Tripod and quickly takes payloads up to 500kg/1100lb. The main features of Dolly are – Secure Tripod feet holders, locking brakes, high-quality wheels and foldable design.
SOLID FOUNDATION FOR WAVE 10′ CRANE
This excellent combination of CST 100mm Tripod Stand and Portable Camera Dolly is sturdy enough to support the Crane when it’s fully loaded and weighed. The Tripod with spreader gives immense support with an incredible payload of up to 80kg/176lb and is highly stable in use.
PAN TILT FEATURES
Two Coreless Motors Two coreless high torque motors provide inaudible movements along with a payload capacity of 5kg / 11lb, which is substantially higher than its counterparts. Brass Gears The high strength brass gears are engineered to withstand long hours of functions and minimal wear and tear.
EASY OPERATION
Speed Controller- Speed Controller adjusts the speed of pan & tilt based on the requirement of the shot.
Dead Spot- The dead spot prevents the head from stopping suddenly with a jerk.
Damping Control- Damping control prevents the head from stopping with a jerk enabling you to achieve smooth endings.
Pan-Tilt Direction- You can reverse the panning & tilting direction as & when required.
10′ WAVE-2 JIB
Construction:High-grade Aluminum & Stainless SteelLoad Capacity: 15kg / 33lb – 25kg / 55lbTripod Mount: 100mm diameterCamera Mount: 100mm and 75mm Bowl head (with ring)Telescopic Range: 6 feet to 10 feetPan Radius: 360 DegreesJib Pan Lock: Yes (via pan friction knobs on U-Hub)Jib Tilt Lock: NoCamera Plate Tilt Lock: Yes (via adjusting the camera head plate knob and ratchet knobs on jib arm)Self Balance: 7 kg/15 lbBalancing Chart:
CAMERA WEIGHT———-COUNTER BALANCE
1kg———————–2kg
2kg———————–4kg
3kg———————–6kg
4kg———————–8kg
5kg———————–10kg
SENIOR PAN TILT HEAD
Material of Construction: High-Grade AluminumLoad Capacity:7.5kg / 16.5lbPan and Tilt: Movement: 360°Speed:(i) Minimum: 6°/sec, (ii) Maximum: 51°/sec, (iii) It covers 360° at Slowest Speed in 2 minutes, (iv) It covers 360° at Highest Speed in 7 secondsMotor: Two high torque, coreless DC motors that rotate the Head 360° (Pan/Tilt)Gear: (i) 2 Small Brass Gears: 13.5mm, (ii) 2 Large Aluminum Gears: 88mmHead Adjustment: (i) Minimum Height: 18.5″ / 46.99 cm, (ii) Maximum Height: 26″ / 66 cmJoystick Controller: (i) Connectors: 2x 4-Pin XLR Male Connectors, (ii) Pan/Tilt Direction: Yes, (iii) Upgraded with: Damping KnobAC Adapter Input: AC 100-240V ; Output 12V DC-2ACables: (i) Cable Length: 15 meters (Can be extended up to 50meter), (ii) Cable Connector: 4-Pin XLR, (iii) Battery Cable: 3 meters LongWeight: (i) Pan/Tilt Head: 3 kg / 6.6 lb, (ii) Joystick: 800 gram / 28.22 oz, (iii) Bag Dimensions: 50 x 35 x 19 cm
CST-100 TRIPOD STAND
Construction: High-grade CNC AluminumLoad Capacity:up to 80 kg /176lbDiameter of Tripod Tubes: 20mm and 14mmLength: (i) Maximum – 60 inches, (ii) Minimum – 34 inchesCollapsible Height: 6.50 kg / 14.33 lbPackage Weight: 11.4 kg / 25 lbBox Dimension (LXWXH): 39.7 x 10.2 x 9.5”
ALUMINUM SPREADER
Construction: High-grade CNC AluminumCompatibility: All Tripods with Twin Spiked FeetLoad Capacity: up to 400kg / 880lbSpreader Height: 50mm / 2inchesBuild-up Radius: 41 – 66cm / 16 – 26inchesWeight: 2.47kg / 5.44lbPackage Weight: 3kg / 6.61lbBox Dimension (LXWXH): 55 x 18 x 14″
PORTABLE DOLLY
Construction: High-grade Mild SteelWeight Capacity: up to 500kg/ 1100 lbTripod Foot Compatibility: Spiked FeetLocking Wheels: YesWeight of Product: 10.7kg / 23.5lbPackage Weight: 11.65 kg / 25.68 lbBox Dimension (LXWXH): 23.4 x 10.7 x 9.4″
IN THE BOX

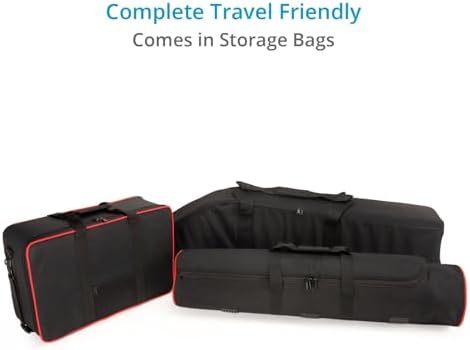

Proaim 10′ Wave-2 Plus Camera Jib Arm Proaim CST-100mm Bowl Tripod stand with Aluminum Spreader (CST-100-01) Proaim Portable Dolly (P-PRT-D) Proaim Lanc Zoom Controller (P-ZC-3DV) Proaim Sr. Pan-Tilt Head (PT-SR) 12V Joystick Controller 75mm Bowl adapter Storage Bag
Heavy Duty Stand supports heaviest of loads with an ease.
Rock Solid Dolly gets connected to tripod quickly & delivers smooth moving experience.
Rugged Sr Pantilt for precise panning & tilting.
Lightweight, Portability and Durability makes it a best buy among others.
